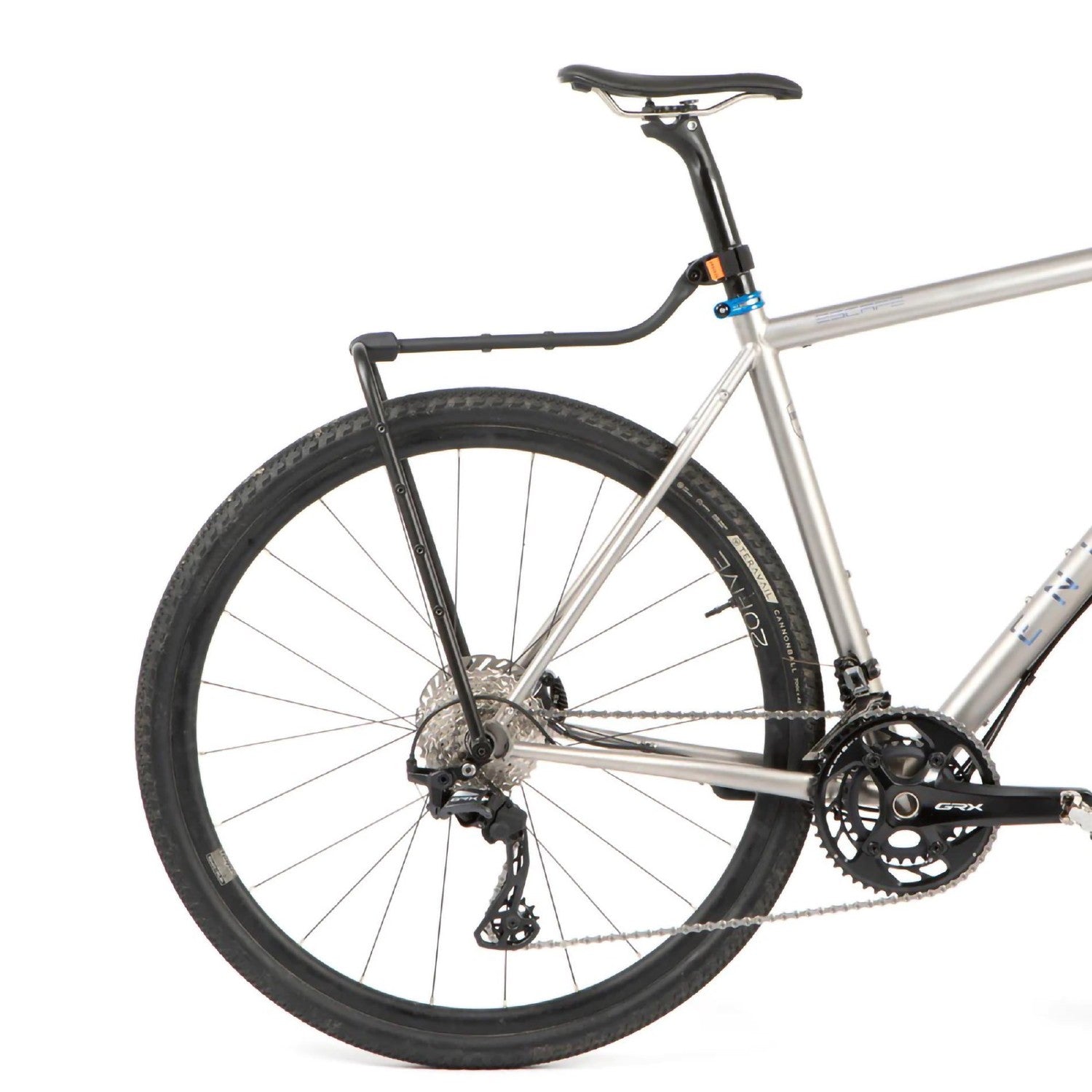

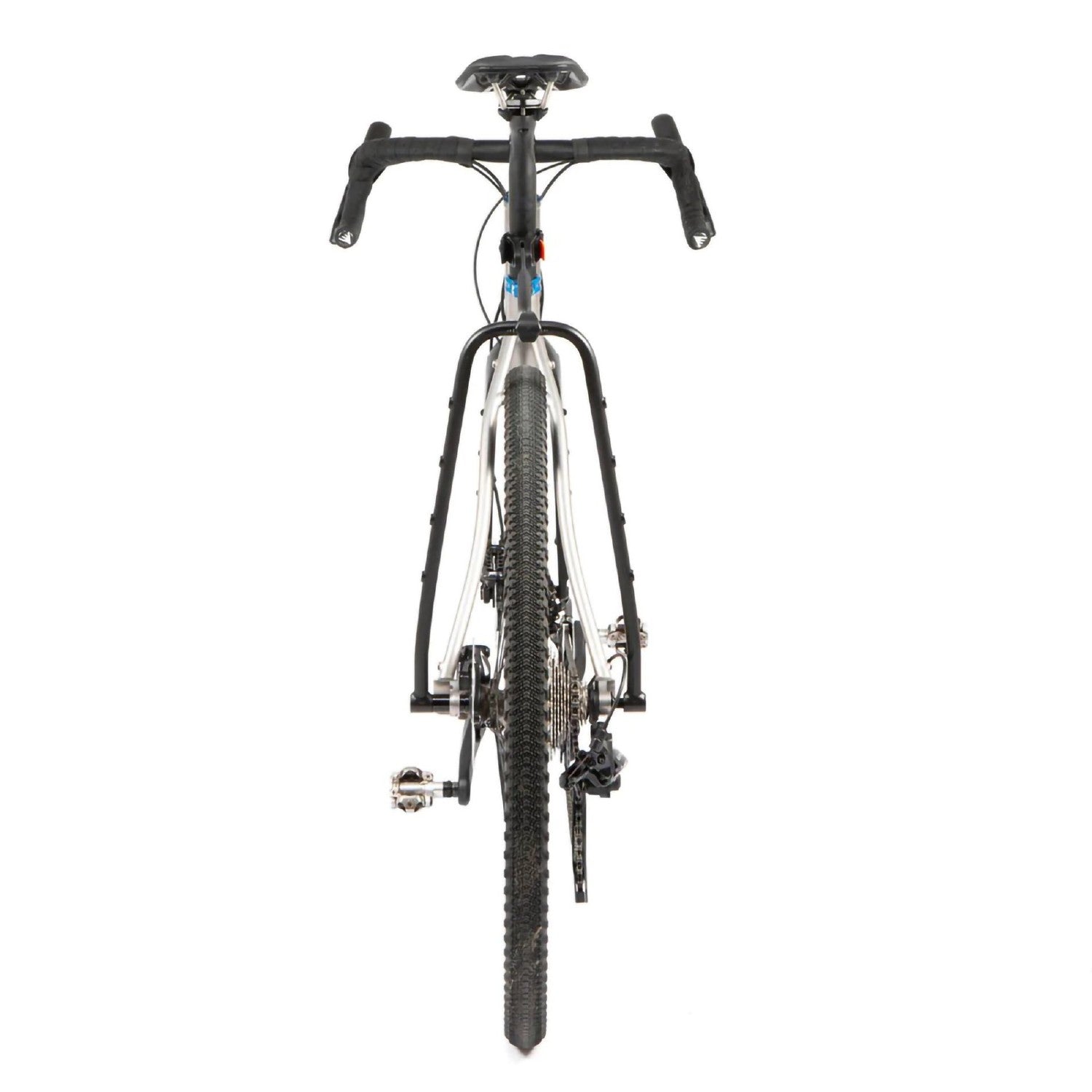

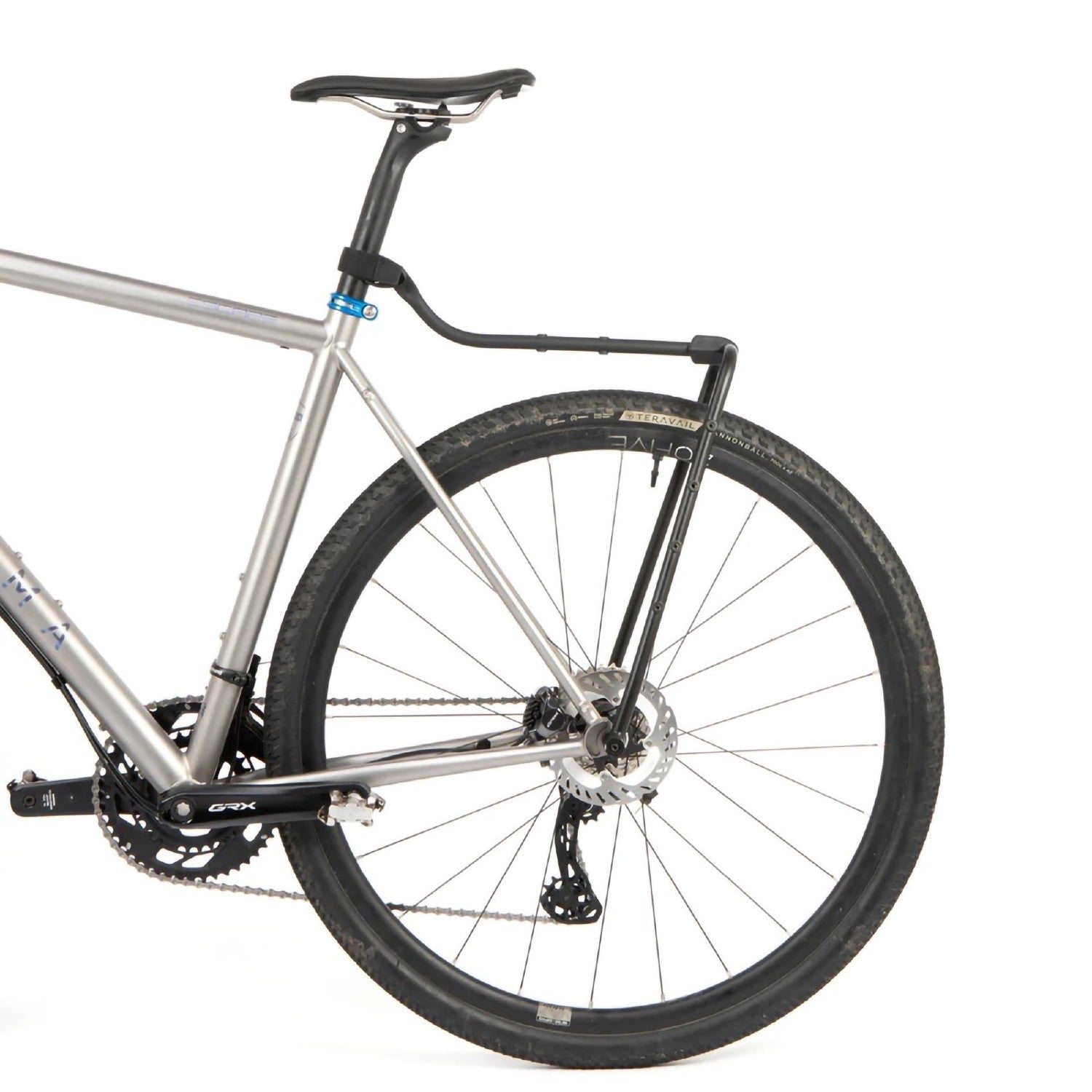

Restrap Switch Rack (1mm)

The Restrap Switch Rack is built around engineered minimalism, combining lightweight construction, durable materials and simple installation for riders who want a clean and reliable carrying system.

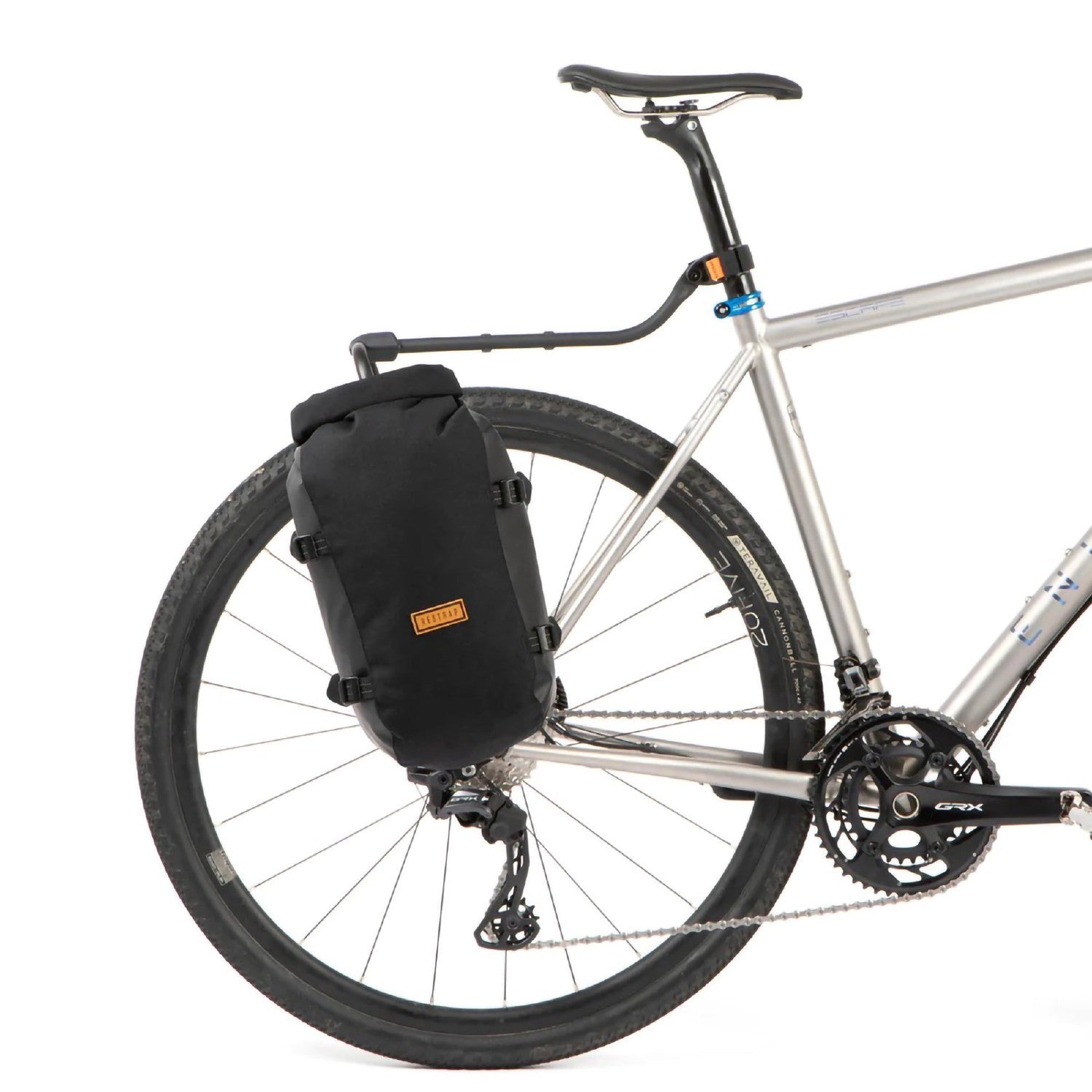

At the core of the Switch ecosystem, it is designed to work with Switch Panniers, Multi-Mount accessories and any gear using 64 mm spaced mounting points, including bottle cages. This makes it a highly versatile platform for bikepacking and commuting setups.

Built for strength and adaptability, the rack uses a thru-axle mounting system with multiple fit options, ensuring a secure and stable setup across compatible bikes.

Features:

• Lightweight aluminium alloy construction
• High grade 7075-T6 aluminium axle system
• Multiple 64 mm spaced mounting points
• Compatible with Restrap Switch products
• Velcro strap fits all seat post sizes and shapes
• Quick flip system for maximum wheel clearance
• Designed for fast installation and removal

Specification:

• Compatible with 12 mm thru-axle bikes
• Compatible with 142 mm and 148 mm Boost spacing
• Axle thread pitch options: 1 mm, 1.5 mm, 1.75 mm
• Weight: 395 g (without axle and bolts)
• Weight: 485 g (including axle and bolts)
• Made in UK

Fitting Information:

• Remove existing bike thru-axle before installation
• Install Switch axle using 6 mm Allen key
• Use supplied spacers to centralise rack position
• Slot rack legs over axle ends and secure with M5 bolts

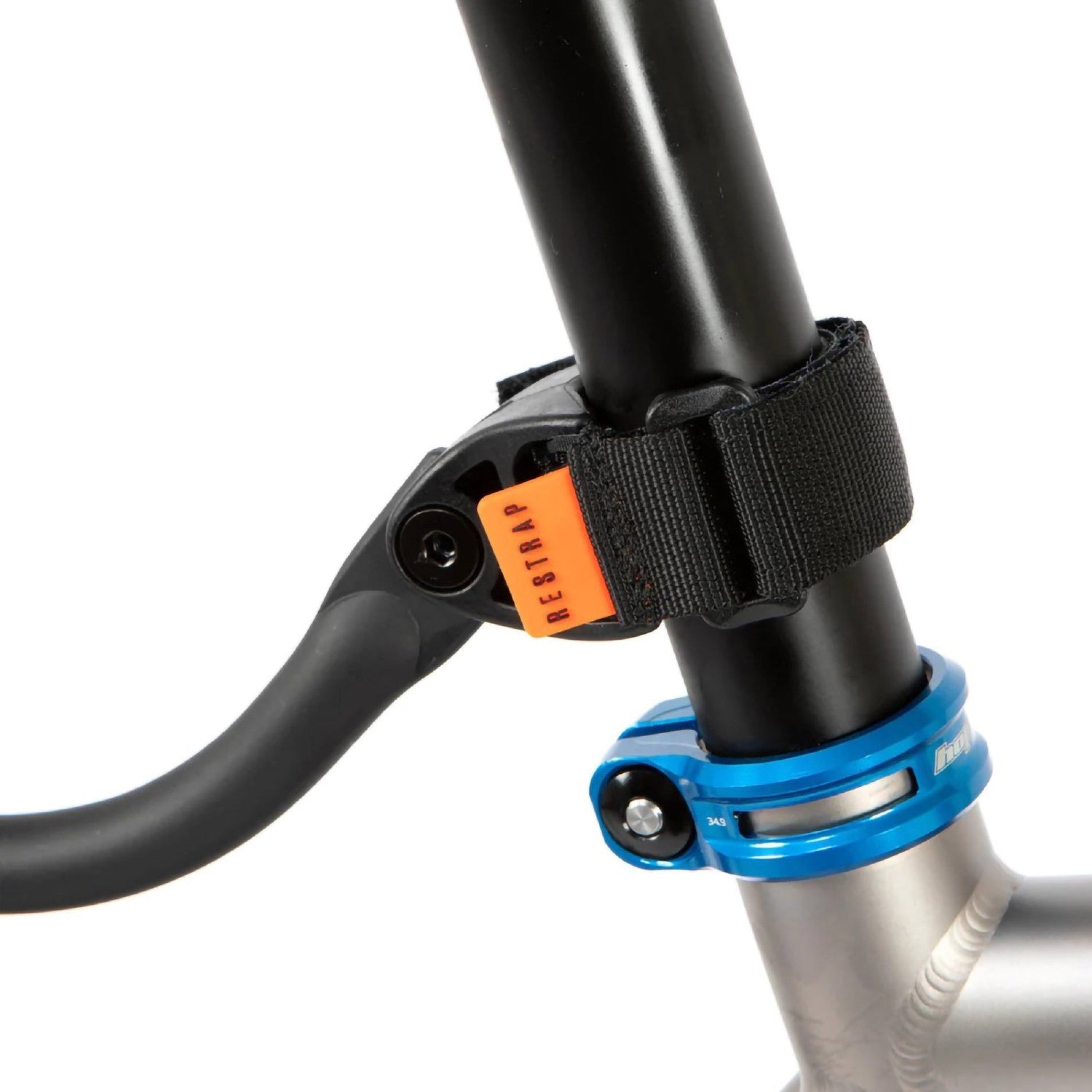

• Wrap and secure velcro strap tightly around seatpost or seat tube
• Ensure all bolts are tightened securely

Tailoring Fit:

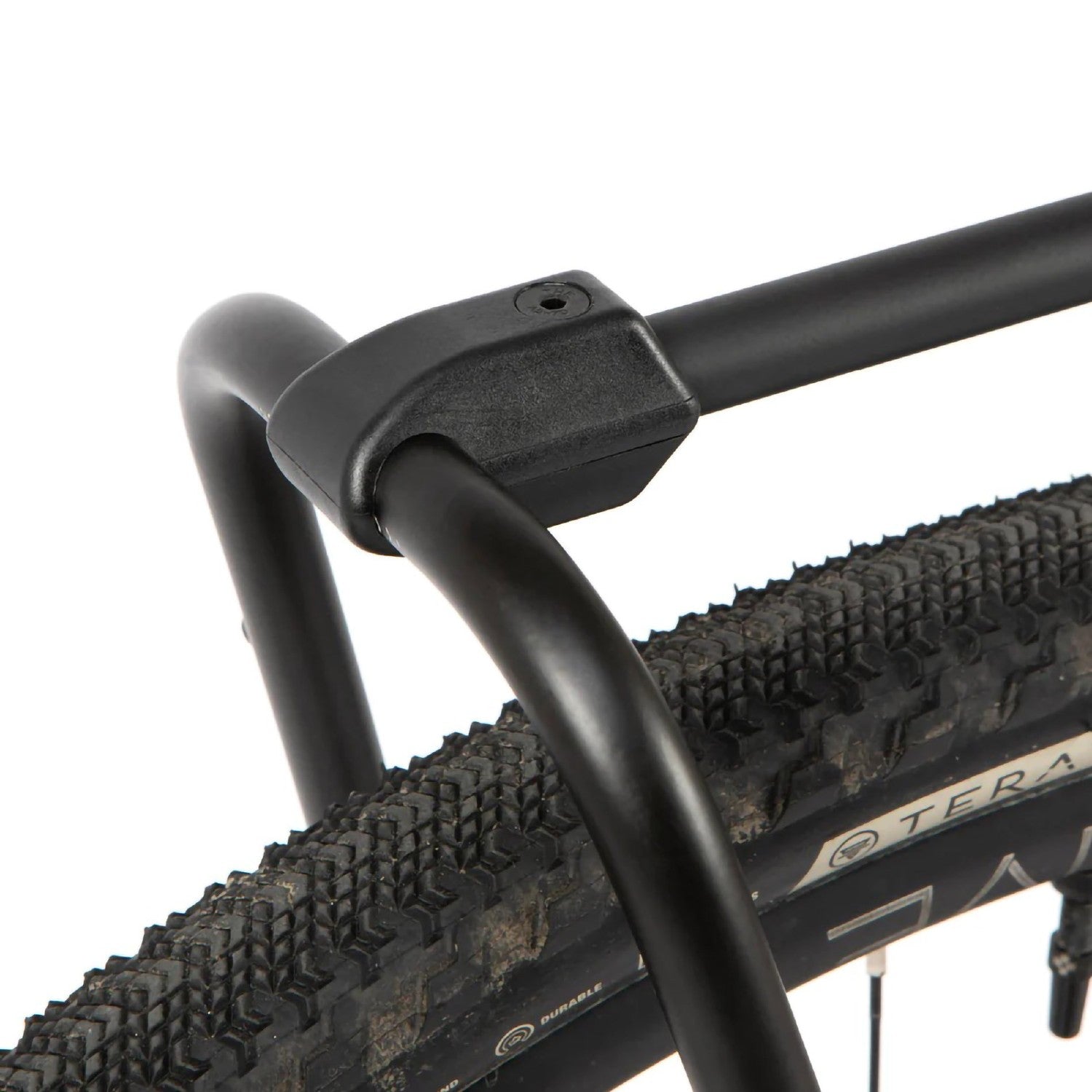

• Quick flip system allows adjustment for wheel clearance
• Rotate top bar to achieve correct alignment
• Re-secure velcro strap with logo facing drive side

Compatibility:

• Only compatible with 12 mm thru-axle bikes
• Compatible with 142 mm and 148 mm Boost spacing
• Not suitable for full suspension frames
• Thread pitch must match bike specification
• UDH frames require Switch UDH adaptor (sold separately)
• SRAM Transmission / T-Type requires Switch Full Mount adaptor (sold separately)

Spares:

• 7075-T6 aluminium axles available separately in 1 mm, 1.5 mm and 1.75 mm thread pitch
