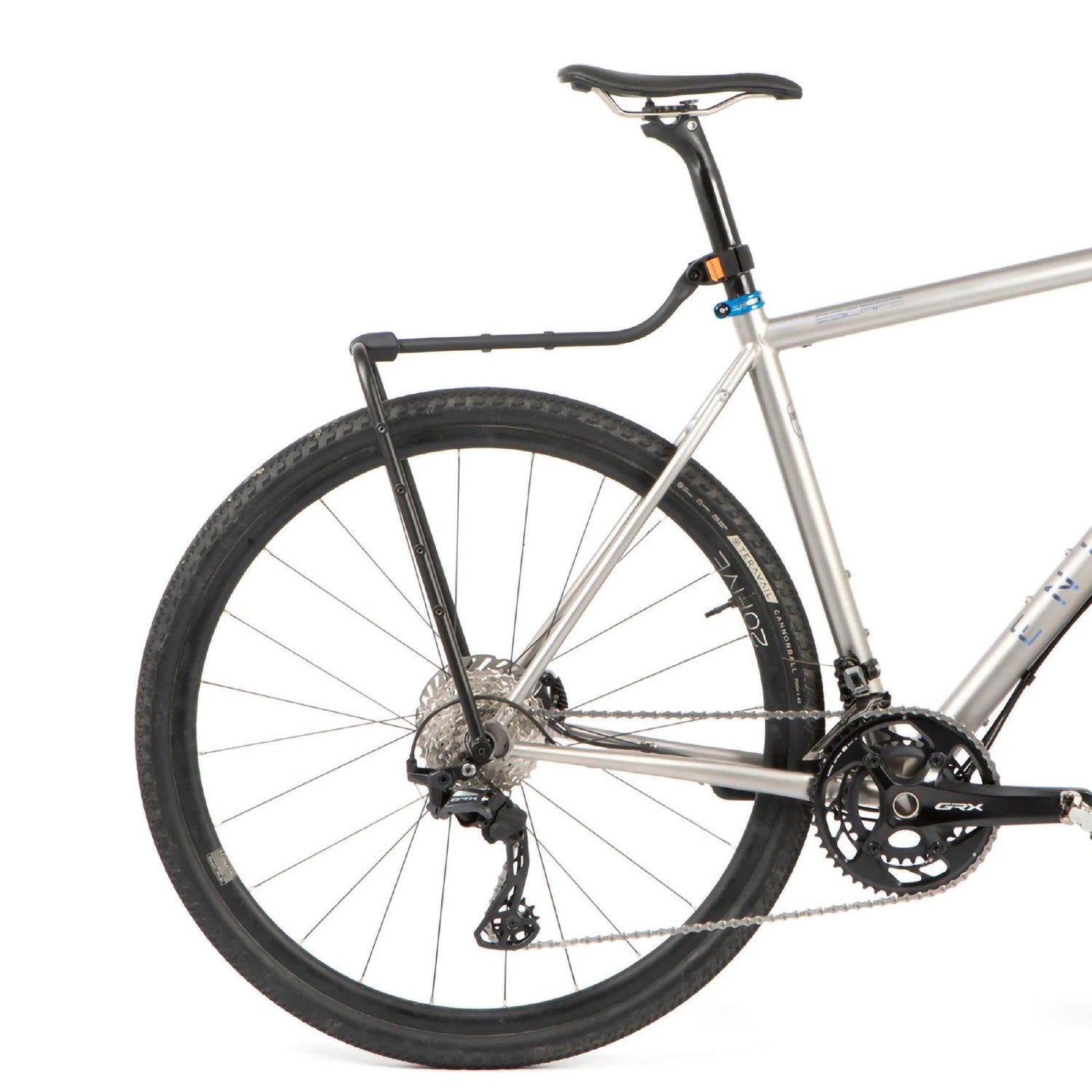

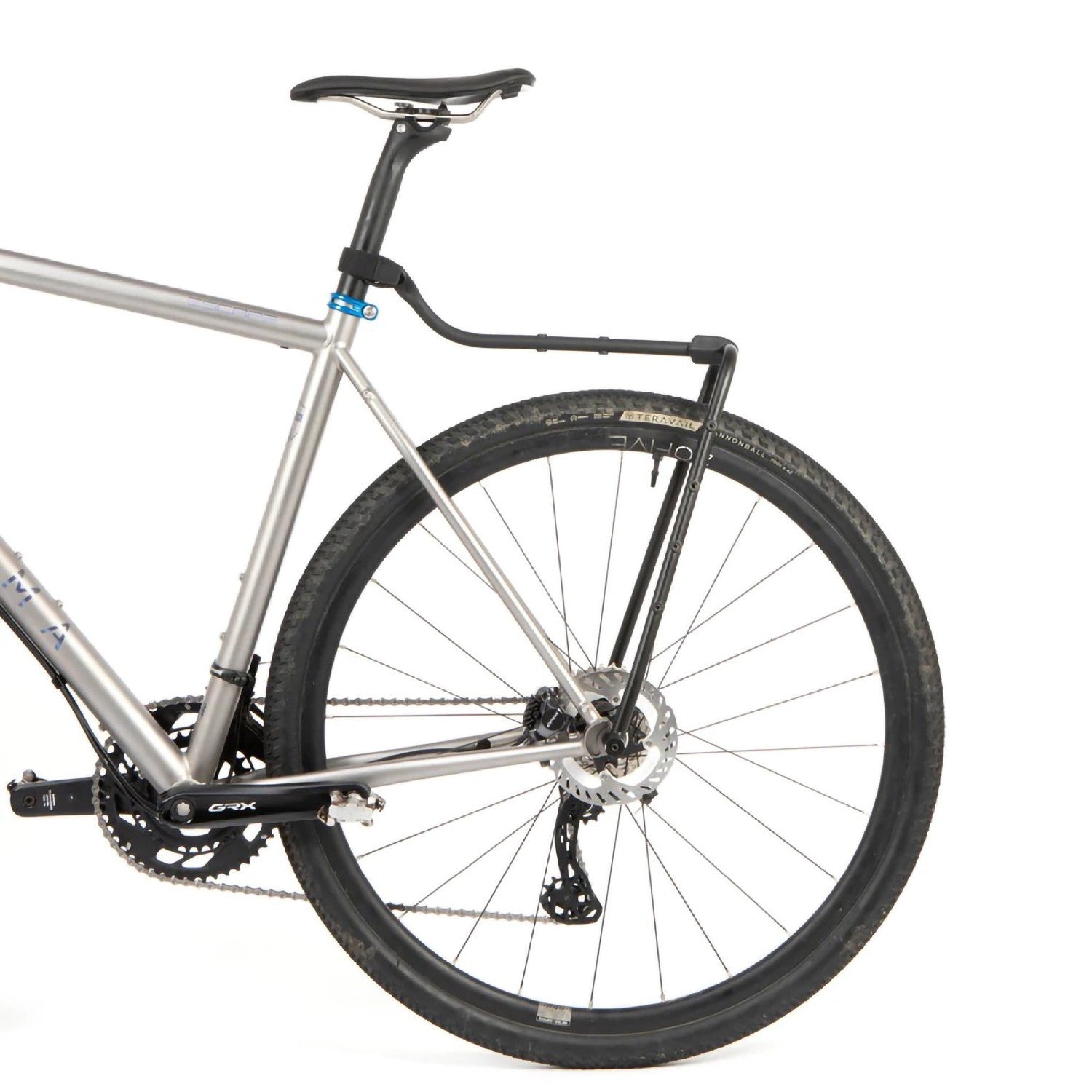

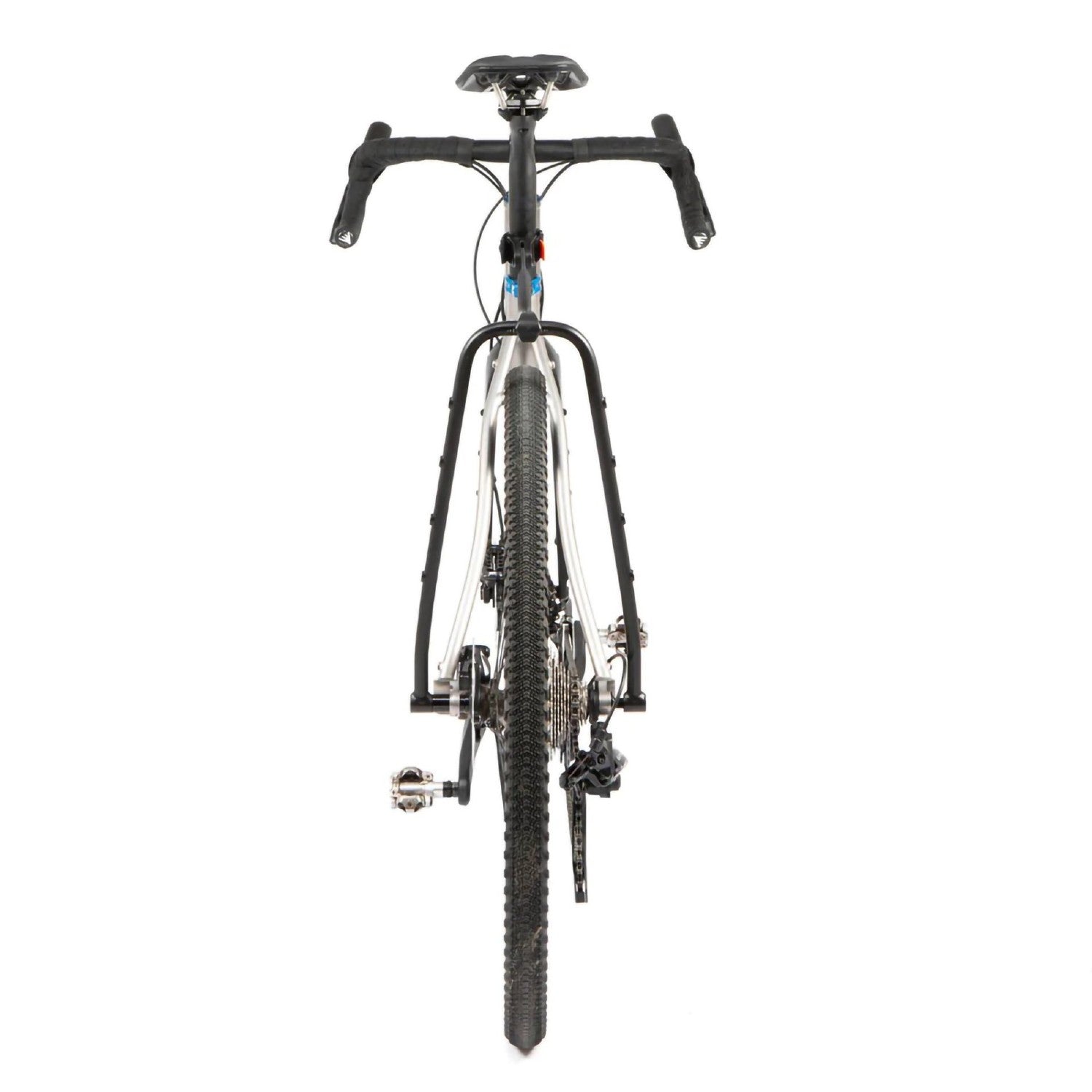

Restrap Switch Rack (1.75mm)

The Restrap Switch Rack delivers a minimalist, lightweight solution without compromising on strength or usability. Designed for quick installation and removal, it provides a clean and efficient setup for a wide range of riding styles.

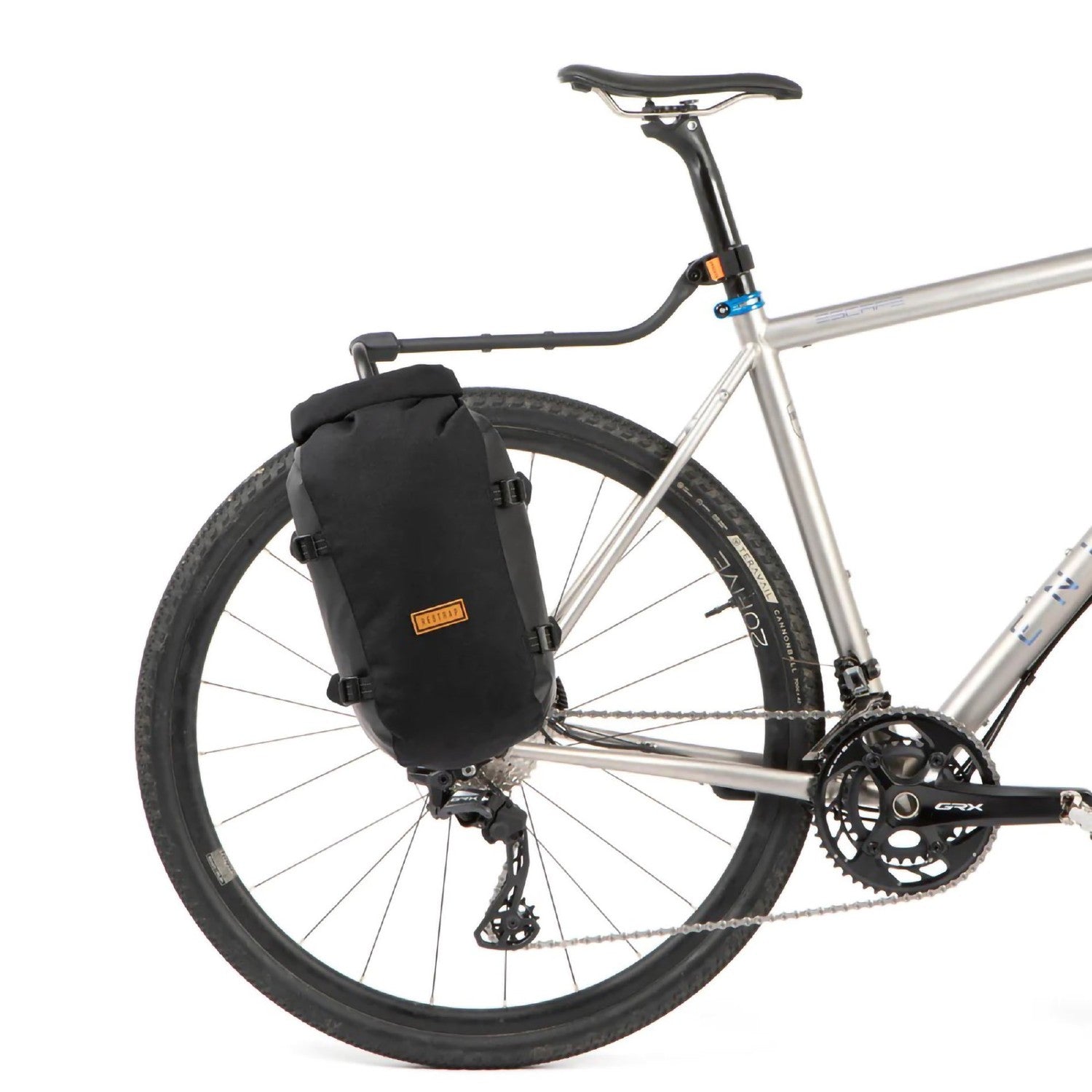

Fully compatible with Switch Panniers, Multi-Mount products and other accessories using 64 mm spaced mounting points, it offers excellent versatility for commuting and bikepacking setups. All mounting hardware is included for easy installation straight out of the box.

Features:

• Lightweight aluminium alloy construction
• High grade 7075-T6 aluminium axle system
• Multiple 64 mm spaced mounting points
• Compatible with Restrap Switch products
• Velcro strap fits all seat post sizes and shapes

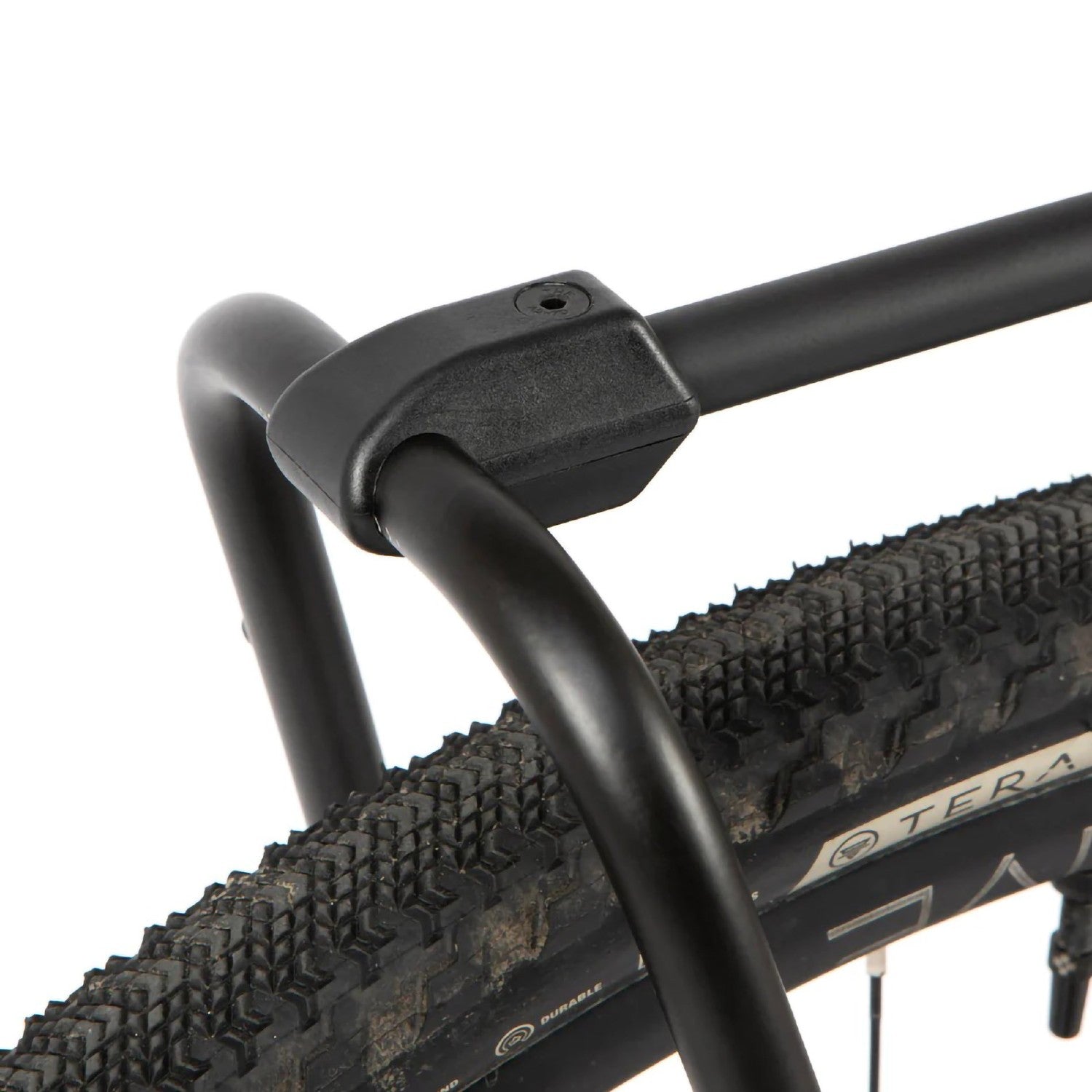

• Quick flip system for maximum wheel clearance
• Fast installation and removal design

Specification:

• Compatible with 12 mm thru-axle bikes
• Compatible with 142 mm and 148 mm Boost spacing
• Axle thread pitch: 1.75 mm
• Weight: 395 g (without axle and bolts)
• Weight: 485 g (including axle and bolts)
• Made in UK

Fitting Information:

• Remove existing bike thru-axle before installation
• Install Switch axle using 6 mm Allen key
• Use supplied spacers to centralise rack position
• Slot rack legs over axle ends and secure with M5 bolts

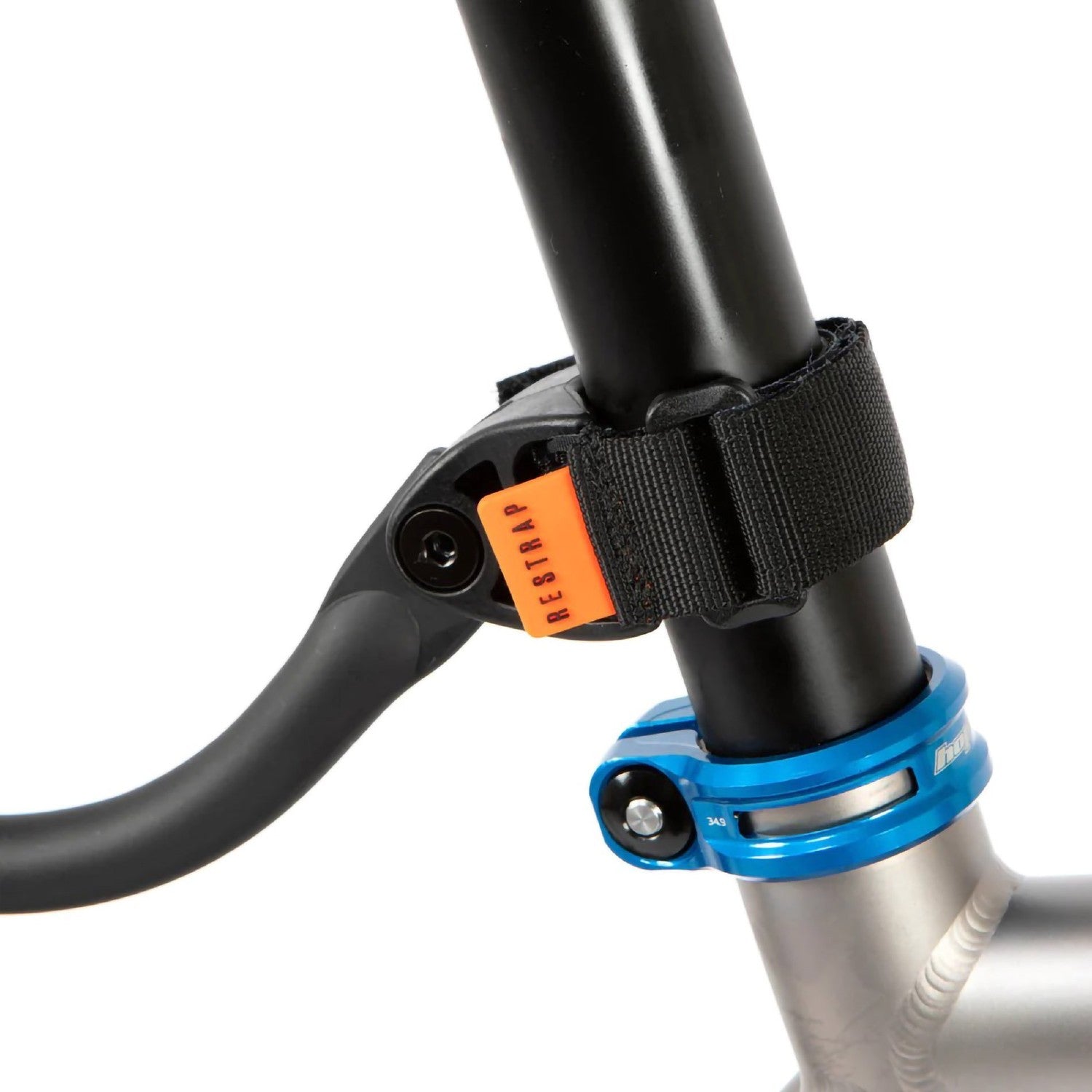

• Wrap velcro strap tightly around seatpost or seat tube
• Tighten all bolts securely

Tailoring Fit:

• Quick flip system allows adjustment for wheel clearance
• Rotate top bar to achieve correct positioning
• Ensure velcro strap is rethreaded with logo facing drive side

Compatibility:

• Only compatible with 12 mm thru-axle bikes
• Compatible with 142 mm and 148 mm Boost spacing
• Not suitable for full suspension frames
• Correct thread pitch must match bike
• UDH frames require Switch UDH adaptor (sold separately)
• SRAM Transmission / T-Type requires Switch Full Mount adaptor (sold separately)

Spares:

• 7075-T6 aluminium axles available separately in 1 mm, 1.5 mm and 1.75 mm thread pitch
