Restrap Switch Rack (1.5mm)

The Restrap Switch Rack is built around engineered minimalism, combining lightweight construction, durable materials and simple tool-friendly installation for a clean and reliable carrying setup.

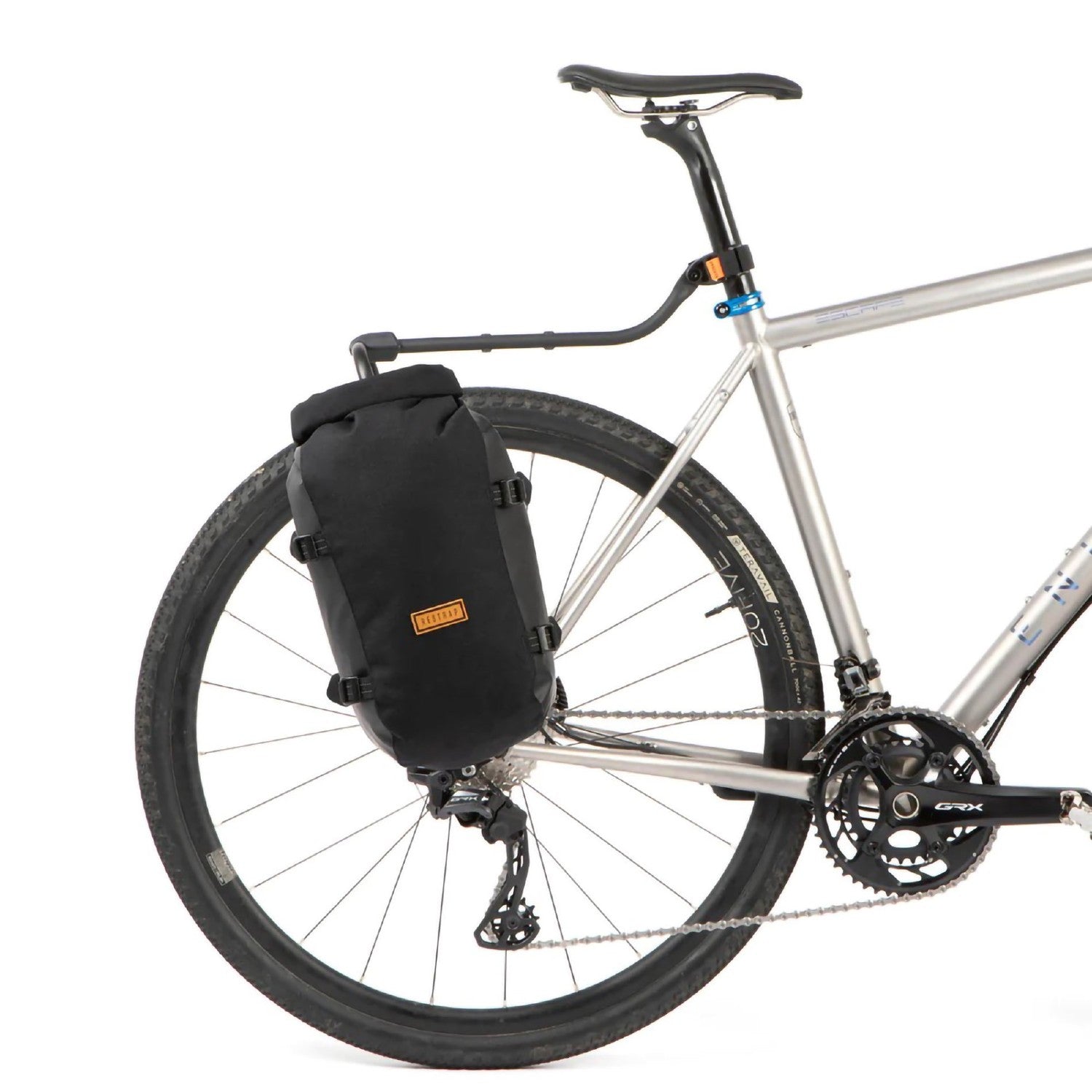

As the core of the Switch system, it works seamlessly with Switch Panniers, Switch Multi-Mount accessories and any gear using 64 mm spaced mounting points, including bottle cages. It is supplied with all required mounting hardware, making it ready to fit and ride.

Designed for strength and versatility, the rack uses a thru-axle mounting system that ensures stability while allowing quick installation and adjustment for compatible bikes.

Features:

• Lightweight aluminium alloy construction
• High grade 7075-T6 aluminium axle system
• Multiple 64 mm spaced mounting points
• Compatible with Restrap Switch products
• Velcro strap fits all seat post sizes and shapes
• Quick flip system for maximum wheel clearance
• Simple and fast installation design

Specification:

• Compatible with 12 mm thru-axle bikes
• Compatible with 142 mm and 148 mm Boost spacing
• Axle thread pitch: 1.5 mm
• Weight: 395 g (without axle and bolts)
• Weight: 485 g (including axle and bolts)
• Made in UK

Fitting Information:

• Remove existing bike thru-axle before installation
• Install Switch axle using 6 mm Allen key
• Use supplied spacers to centralise rack position
• Slot rack legs over axle ends and secure with M5 bolts

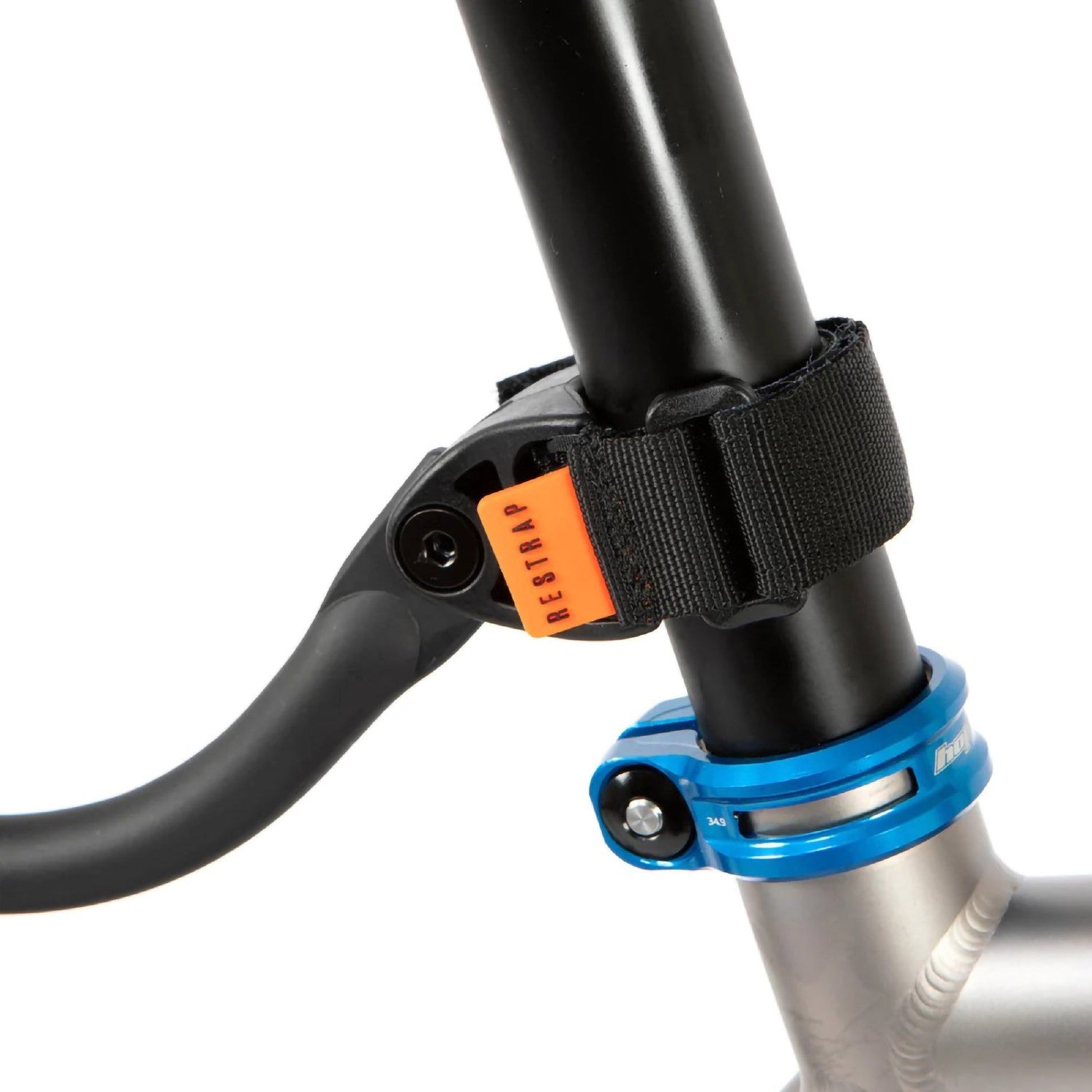

• Wrap velcro strap tightly around seatpost or seat tube
• Tighten all bolts securely

Tailoring Fit:

• Quick flip system allows adjustment for wheel clearance
• Rotate top bar to achieve correct positioning
• Ensure velcro strap is rethreaded with logo facing drive side

Compatibility:

• Only compatible with 12 mm thru-axle bikes
• Compatible with 142 mm and 148 mm Boost spacing
• Not suitable for full suspension frames
• Correct thread pitch must match your bike
• UDH frames require Switch UDH adaptor (sold separately)
• SRAM Transmission / T-Type requires Switch Full Mount adaptor (sold separately)

Spares:

• 7075-T6 aluminium axles available separately in 1 mm, 1.5 mm and 1.75 mm thread pitch
