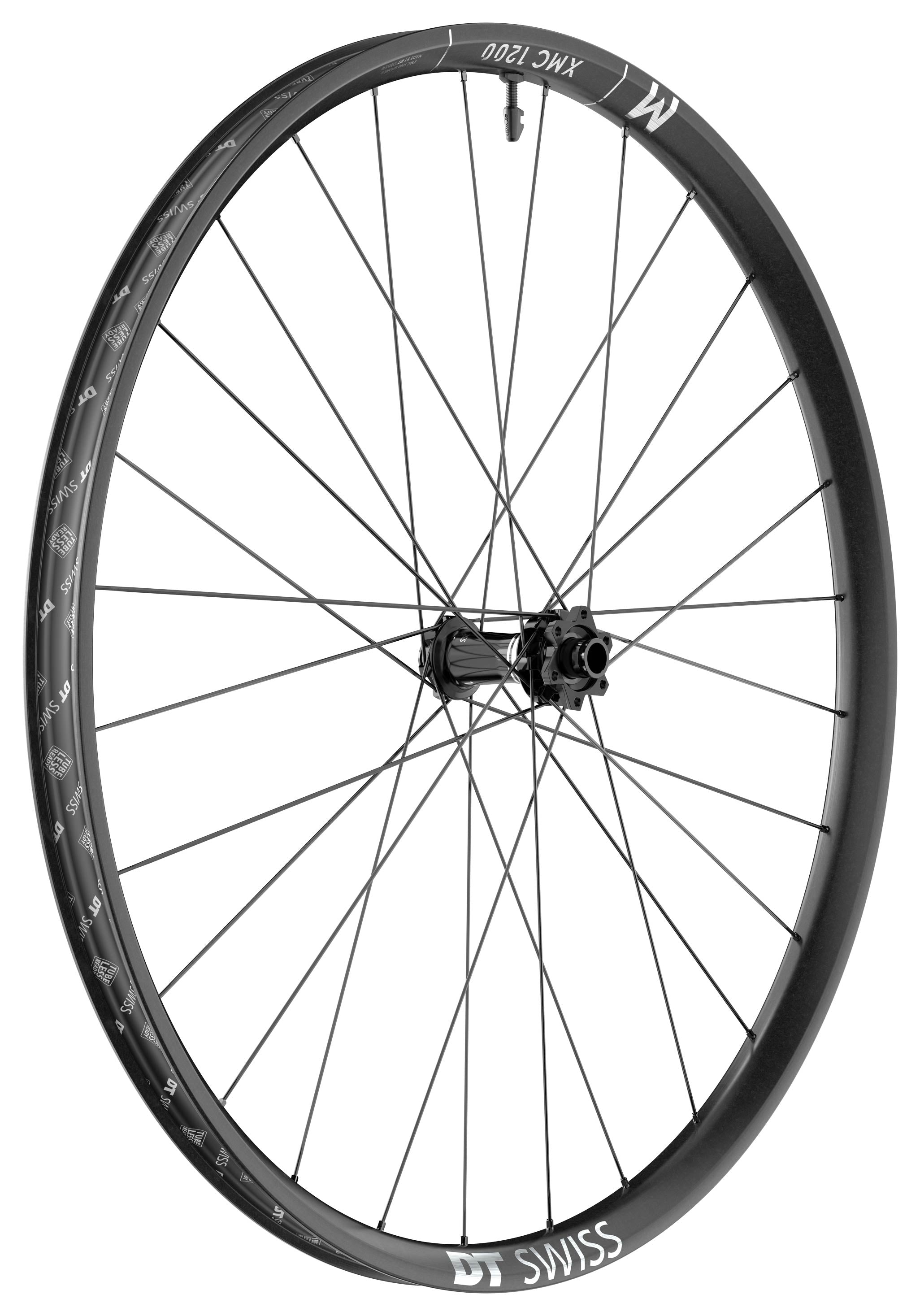

DT Swiss XMC1200 29 12110 30wd 6B MY24 Front Wheel
XMC 1200 SP 29" IS 30mm 15/110 Front
| GENERAL | |
|
Product category
|
MTB |
| Field of application | XMC |
| Product type | 1200 |
| Net weight [g] | 660 |
| recommended system weight max. | 130 kg |
| ASTM classification | 4 |
| Aproved for e-bikes | Yes (max. 32Km/h or max. 250W) |
| Model Year | 2024 |
| 2025 | |
| 2026 | |
| 2027 | |
|
RIM
|
|
|
Material
|
Carbon |
| Tire interface | Hookless tubeless TSS |
| Rim diameter | 622 mm (29" / 700C) |
| Rim height | 20 mm |
| Inner width | 30 mm |
| Outer width | 36 mm |
| Number of holes | 28 |
|
HUB
|
|
|
Axle system
|
15 mm Thru axle |
| Built-in dimension | 110 mm Boost |
| Brake interface | Disc IS (6-bolt) |
| Free hub body | - |
| Cassette interface | - |
| Hub type | 180 |
| Freehub system | - |
|
SPOKES & NIPPLES
|
|
|
Spokes left
|
DT revolite® t-head |
| Spokes right | DT revolite® t-head |
| Spoke pattern | Three-cross (1:1) |
| Nipples | DT ProLock Squorx ProHead alu |
|
ACCESSORIES
|
|
|
Inclusive tape
|
Tubeless tape 32 mm |
| Inclusive valve | TL valve alu black 18-25 mm |
| Inclusive wheel bag | Wheel bag |
