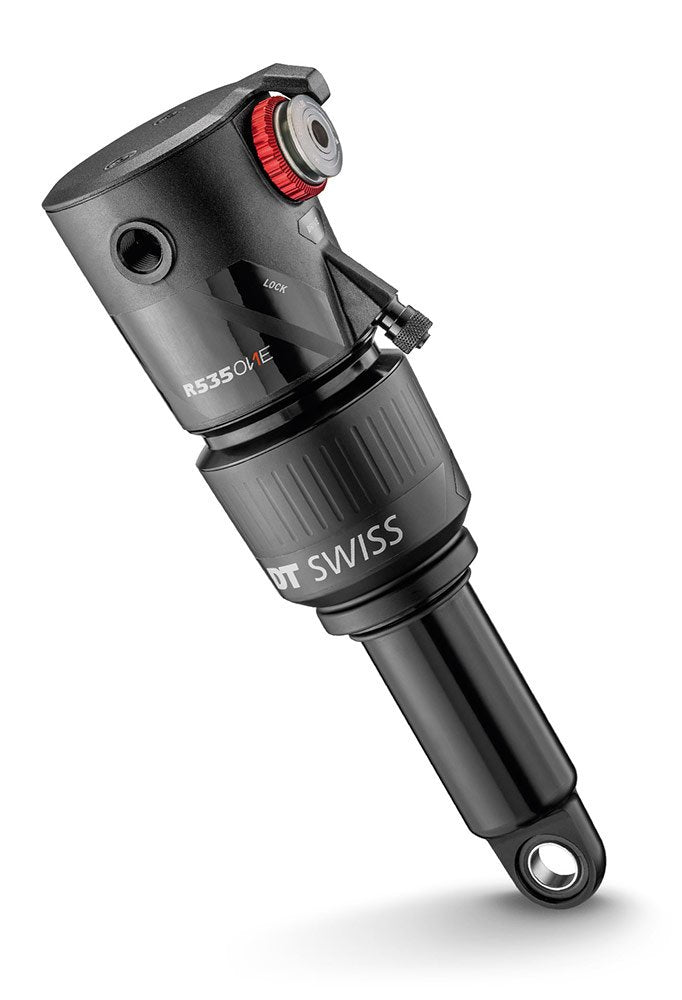

DT Swiss Shock R535 One Trunnion Mount 185
The R 535 ONE, the All-Mountain shock. The large negative air chamber ensures small bump compliance and a linear curve, which gives you the support you need to accelerate in any situation. Its combination of low weight and DT Swiss’ renowned reliability and performance makes the R 535 ONE a trusty companion for single trails!
GENERAL
| Net Weight (g) | 345 |
| Installation Length | 185 mm |
| Travel | 55 mm |
| Mounting System | Trunnion mount |
| Bearing Type | DU bushing |
SPRING & DAMPING
| Spring Technology |
LINEAIR |
| Spring Adjustments | Air pressure |
| Damping System | INCONTROL |
| Setup Compression Rebound |
medium-medium |
| Damping Adjustm. Compression |
INCONTROL (3-Pos.) |
| Damping Adjustments Rebound |
Lowspeed rebound |
TYPE
| Remote |
Lever |
| Remote Adjustment |
None |
| Air Chamber Material |
Aluminium |
| Oil Chamber Material |
Aluminium |
