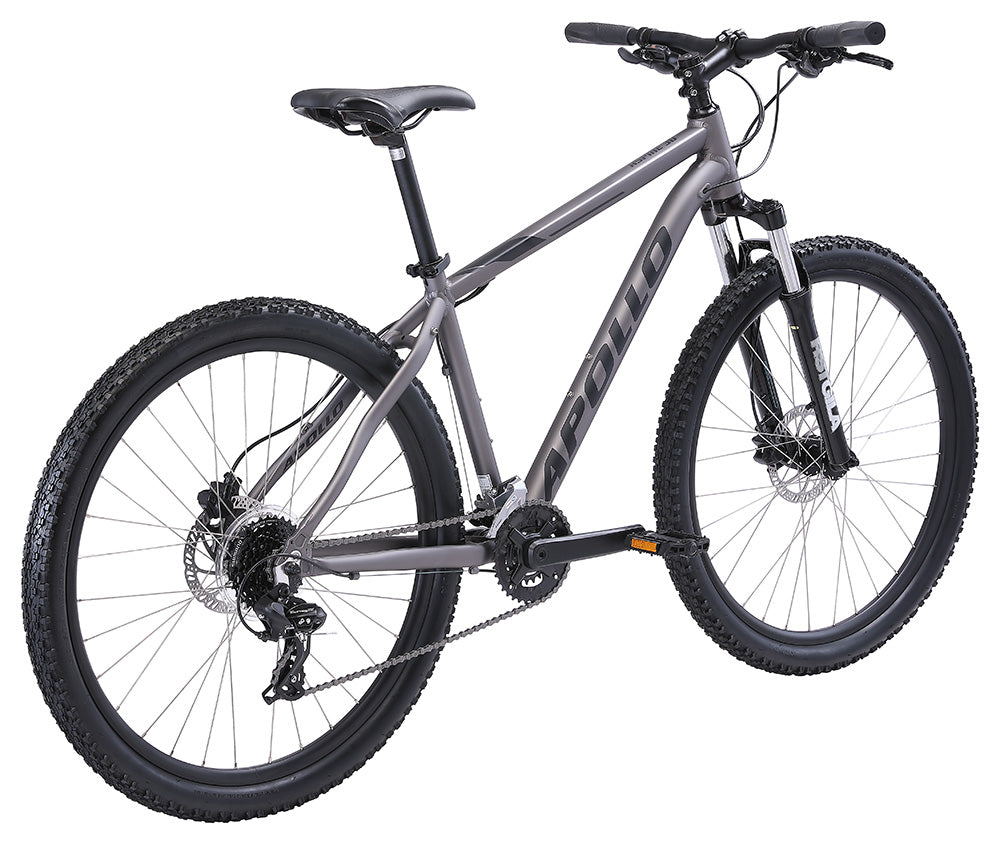

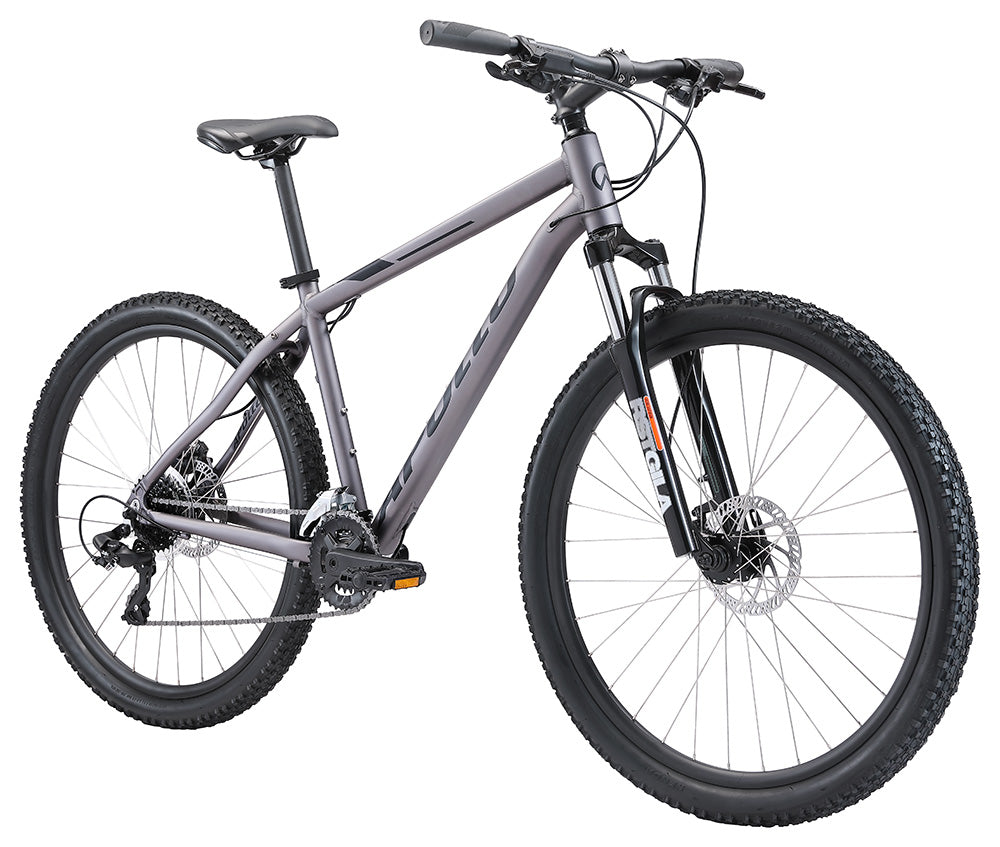

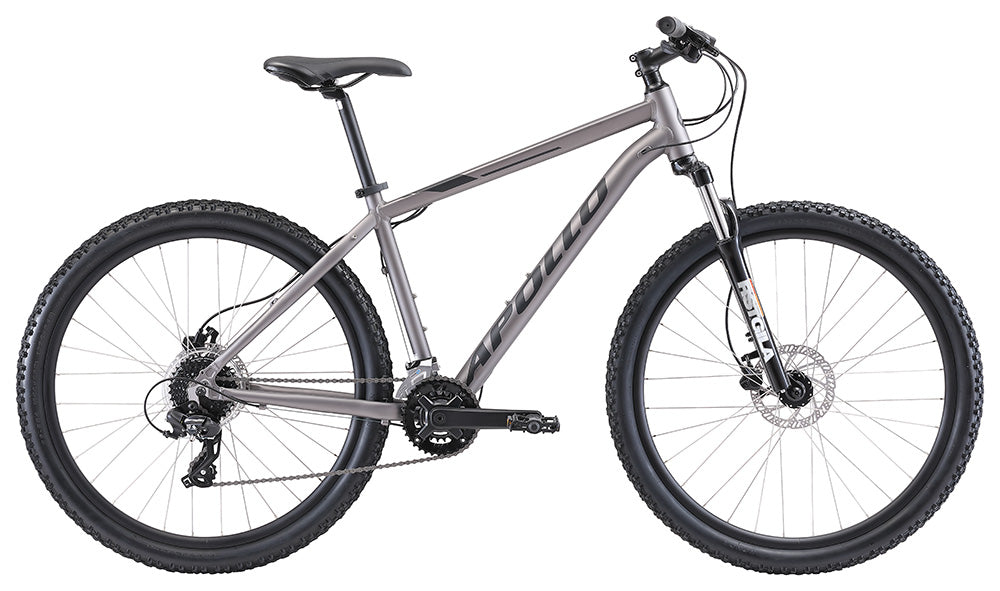

Apollo Aspire 30 MTB 27.5 Extra Small
FRAME
27.5" lightweight 6061 alloy disc specific frame with integrated head tube, internal cable routing, snake stays and replaceable derailleur hanger
FORK
RST GILA 27.5, 80mm travel, preload.
HEADSET
Semi integrated A-head 1-1/8"
HANDLEBAR
Alloy low riser, W: 640mm, R: 20mm, bore: 31.8mm, sweep: 6°
GRIP
Kraton grip
HEADSTEM
Apollo 31.8mm 4 bolt stem, Ext: XS/S=75mm, M/L=90mm, XL=105mm
CRANKSET
Alloy MTB crank 36 x 22T L=170mm
BOTTOM BRACKET
Cartridge bottom bracket
PEDALS
Low profile high impact resin
FRONT DERAILLEUR
Shimano FD-M315 2 speed
REAR DERAILLEUR
Shimano TX-800 8 speed
SHIFT LEVERS
Shimano SL-M315 2x8 speed
CASSETTE
Shimano HG-200 8 speed cassette 12-32T
CHAIN
KMC Z-7
BRAKES
Tektro HD-M275 hydraulic disc brakes, 160mm rotors
WHEELS
27.5" alloy 32 hole A/V double wall disc specific rims, alloy disc hubs and stainless spokes
TYRES
Kenda 27.5 x 2.1" wire bead
SADDLE
Apollo MTB sport saddle
SEATPOST / CLAMP
Alloy micro adjust 27.2mm, L:350mm with QR clamp
