Confidently and smoothly pedal your cargo bike with the compact and efficient E6100-CRG Drive Unit powered by dedicated cargo assist firmware.

Features

Dedicated cargo assist firmware

Optimised pedaling efficiency

Compact & integrated design

Smooth pedaling

Max. output 60 Nm

Walk assist mode

Start mode available when used with a Di2 internal geared hub

Full-automatic shifting available when used with a Di2 internal geared hub

Chain case compatible

Torque sensor

Crank arm position sensor

Cadence sensor

Chain case compatible

Automatic shift - Internal geared hub 5-speed (INTER-5E)

Automatic shift - Internal geared hub 8-speed

DI2 compatible - Internal geared hub

DI2 compatible - Rear derailleur

Firmware update by E-tube Project

Master unit

Symphomatic- Internal geared hub

Safe way home function

Walk assist function - Quick

Firmware update by E-Tube Project

Master unit

Specifications

Colour Standard Weight 2.76g Remarks In case of DI2 **Set by E-TUBE PROJECT ***By using SM-DUE10/SM-DUE11 Compatible Brake type Disc brake Motor type Brushless motor Position Mid ship Compatible Wheel Size (mm) 1,150 - 3,000 Continuous Rated Power (Watt) 250 Maximum torque (Nm) 60 Rated Voltage 36 V DC Assist mode High

Normal

Eco Power supply For Front Light:12 V DC

For Rear Light:12 V DC Communication E-Tube Compatible spindle type 24mm 2pinch bolt narrow Maximum current supply front and rear light total (A) 2 Port for Speed Sensor (pcs) SD50 type: 1 Terminal for Light (pcs) 1 SD50 port (pcs) 2

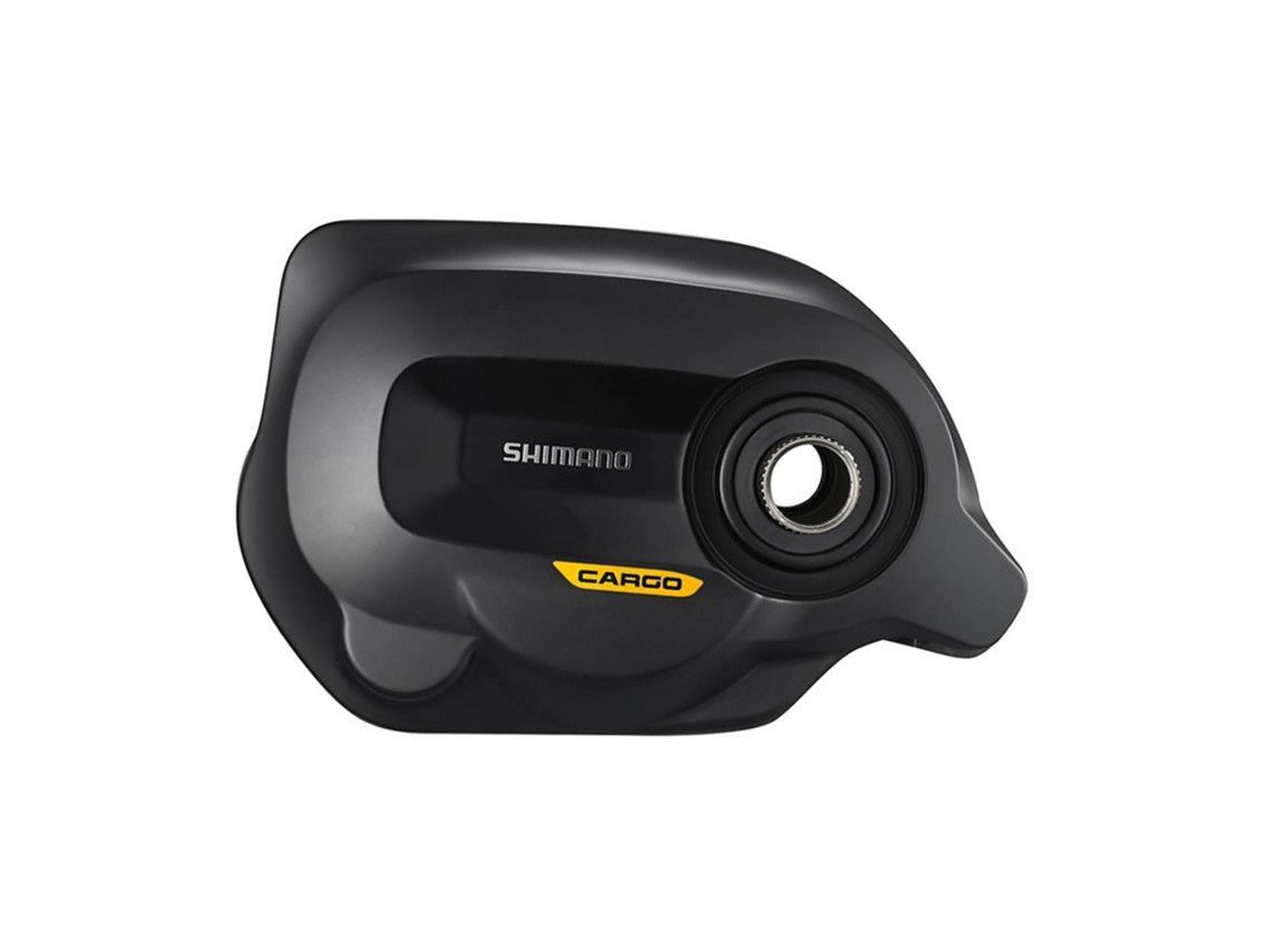

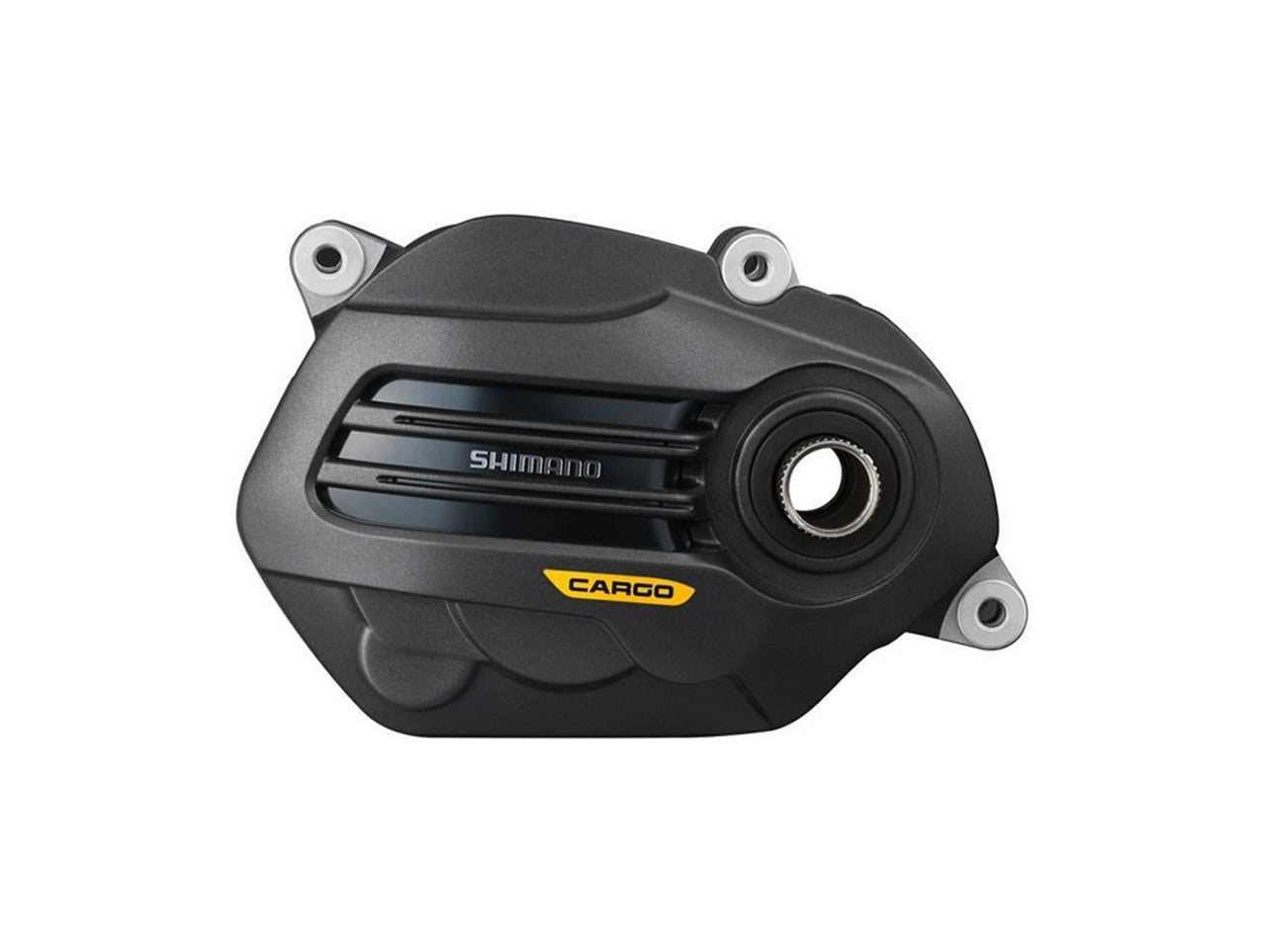

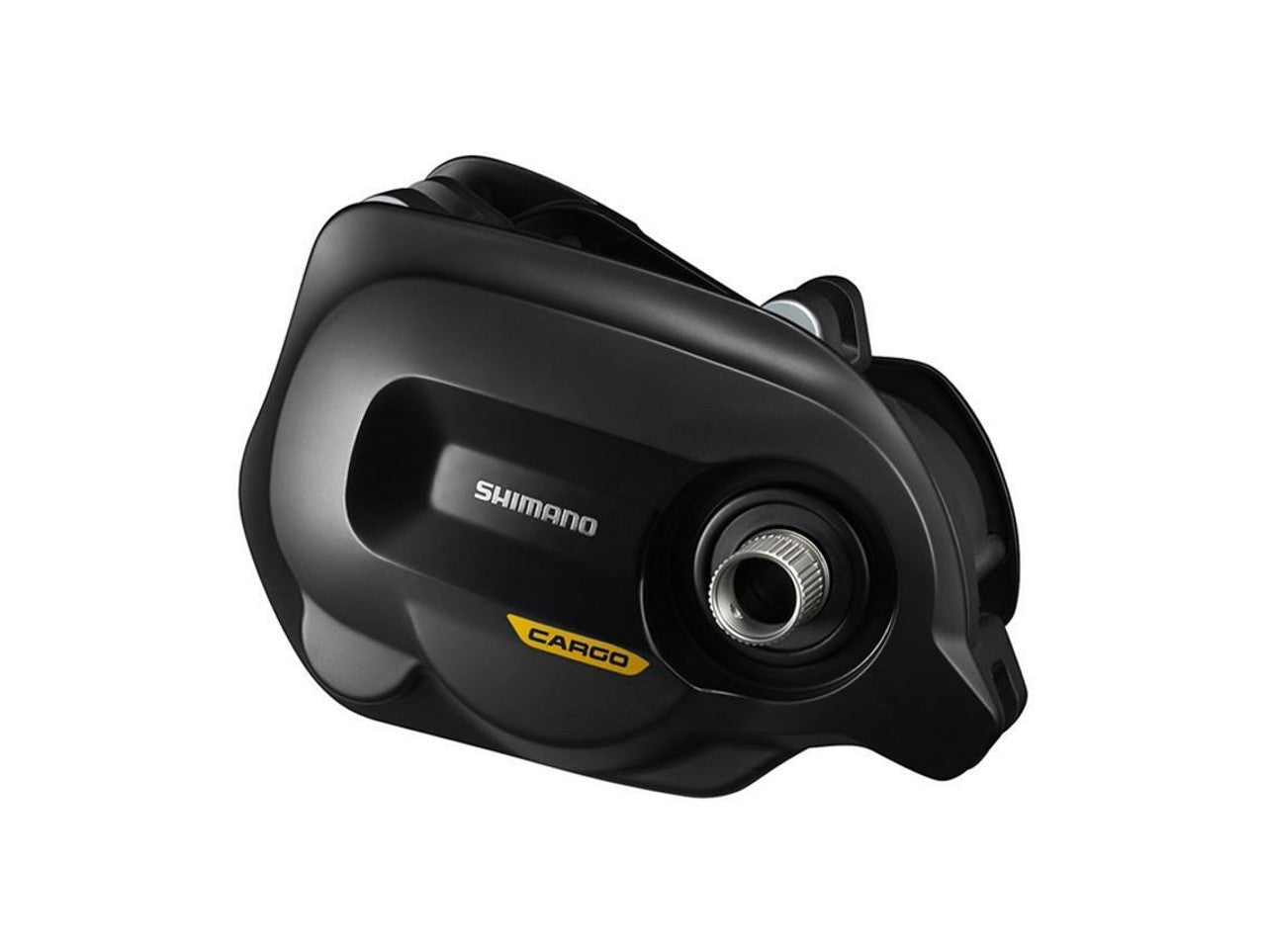

Shimano STEPS DU-E6100-CRG Drive Unit (w/o Cover and Sensor Unit)

by Shimano
SKU: IDUE6100CRG
Regular price $1,049.99
Unit price
per
No Reviews
(0 in cart)
FREE SHIPPING

On all orders over $150*

DISCOUNTS GUARANTEED

Full price is never an option.

SECURE CHECKOUT

Fast & secure payments.

Confidently and smoothly pedal your cargo bike with the compact and efficient E6100-CRG Drive Unit powered by dedicated cargo assist firmware.

Features

Dedicated cargo assist firmware

Optimised pedaling efficiency

Compact & integrated design

Smooth pedaling

Max. output 60 Nm

Walk assist mode

Start mode available when used with a Di2 internal geared hub

Full-automatic shifting available when used with a Di2 internal geared hub

Chain case compatible

Torque sensor

Crank arm position sensor

Cadence sensor

Chain case compatible

Automatic shift - Internal geared hub 5-speed (INTER-5E)

Automatic shift - Internal geared hub 8-speed

DI2 compatible - Internal geared hub

DI2 compatible - Rear derailleur

Firmware update by E-tube Project

Master unit

Symphomatic- Internal geared hub

Safe way home function

Walk assist function - Quick

Firmware update by E-Tube Project

Master unit

Specifications

Colour Standard Weight 2.76g Remarks In case of DI2 **Set by E-TUBE PROJECT ***By using SM-DUE10/SM-DUE11 Compatible Brake type Disc brake Motor type Brushless motor Position Mid ship Compatible Wheel Size (mm) 1,150 - 3,000 Continuous Rated Power (Watt) 250 Maximum torque (Nm) 60 Rated Voltage 36 V DC Assist mode High

Normal

Eco Power supply For Front Light:12 V DC

For Rear Light:12 V DC Communication E-Tube Compatible spindle type 24mm 2pinch bolt narrow Maximum current supply front and rear light total (A) 2 Port for Speed Sensor (pcs) SD50 type: 1 Terminal for Light (pcs) 1 SD50 port (pcs) 2
