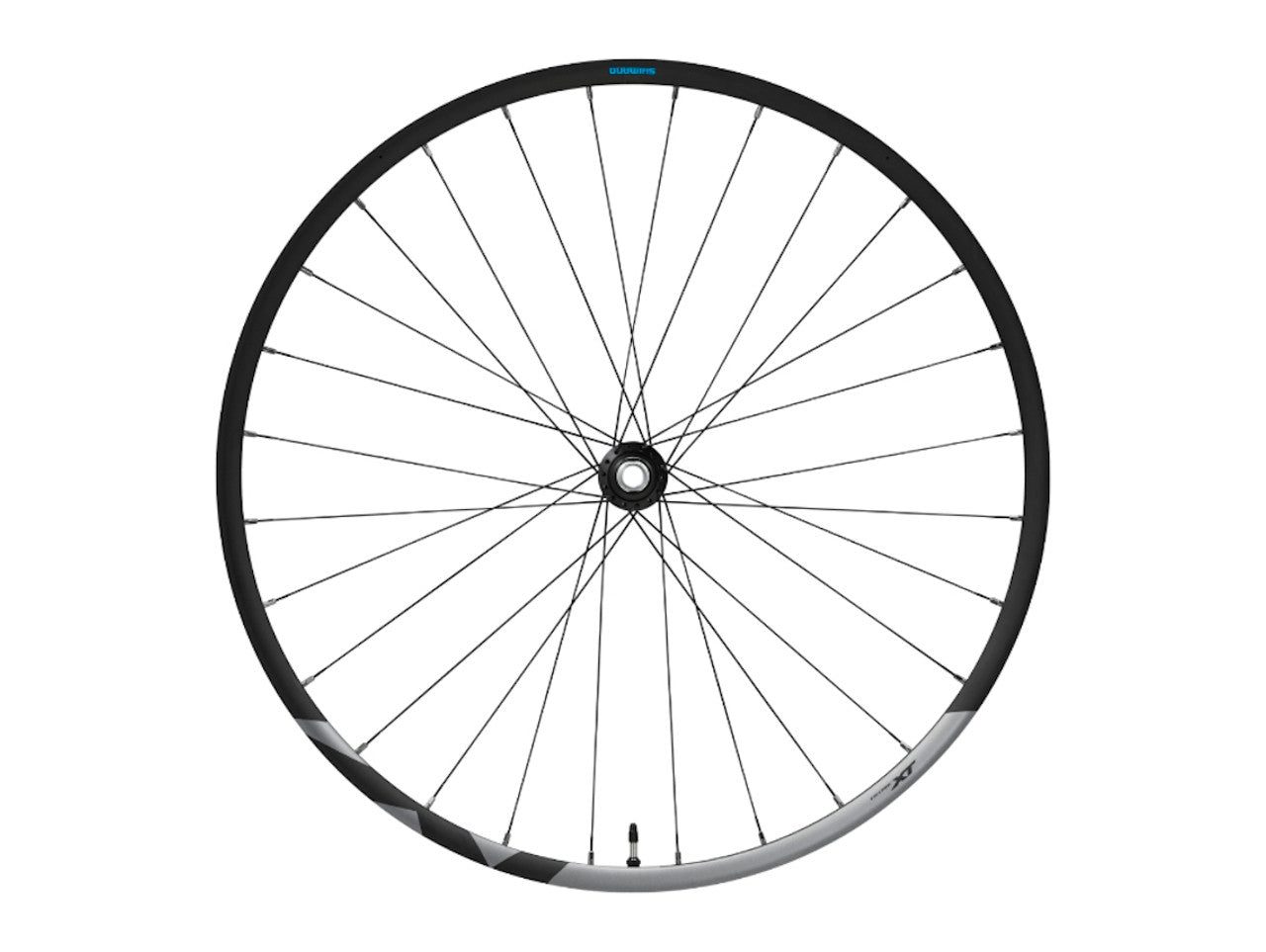

Shimano Deore XT wheels bring robust performance to any trail
The aluminum tubeless rims are offset for balanced spoke tension. Double butted, straight-pull spokes are laced to Center Lock hubs with reliable, smooth-rolling labyrinth seal hubs.
Technologies
Center Lock -makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
Features
Reliable high-speed cornering
Front 15 mm E-THRU axle +15% torsional stiffness +25% transverse shear stiffness (vs 9 mm quick release)
Simple setup and reliable trail performance
28 J-bend spokes (2.0-1.8-2.0 double butted)
External rim width: 34.7 mm
Specifications
Average Weight
941
Spokes
J-bend
Brake Type
Center Lock Disc
Axle Fixing Method
15 mm E-Thru
O.L.D
110mm
Axle
Fixing Method: 15mm E-Thru
Thru Axle Length x Inner Diameter: 110x15mm
Bearing
Cone: CBN
Stainless Ball: Yes
Rim
Height: 19.8mm
Offset Rim: Yes
Requires Rim Tape:X (30 - 584)
Joint: Welding
Width: 34.7mm
Seal
Hub: Labyrinth & Contact
Spokes
Butted:2.0 - 1.8
Number: 28
Tyre
Type: Tubeless
Wheel Size
622 x 30C (29 inch)
