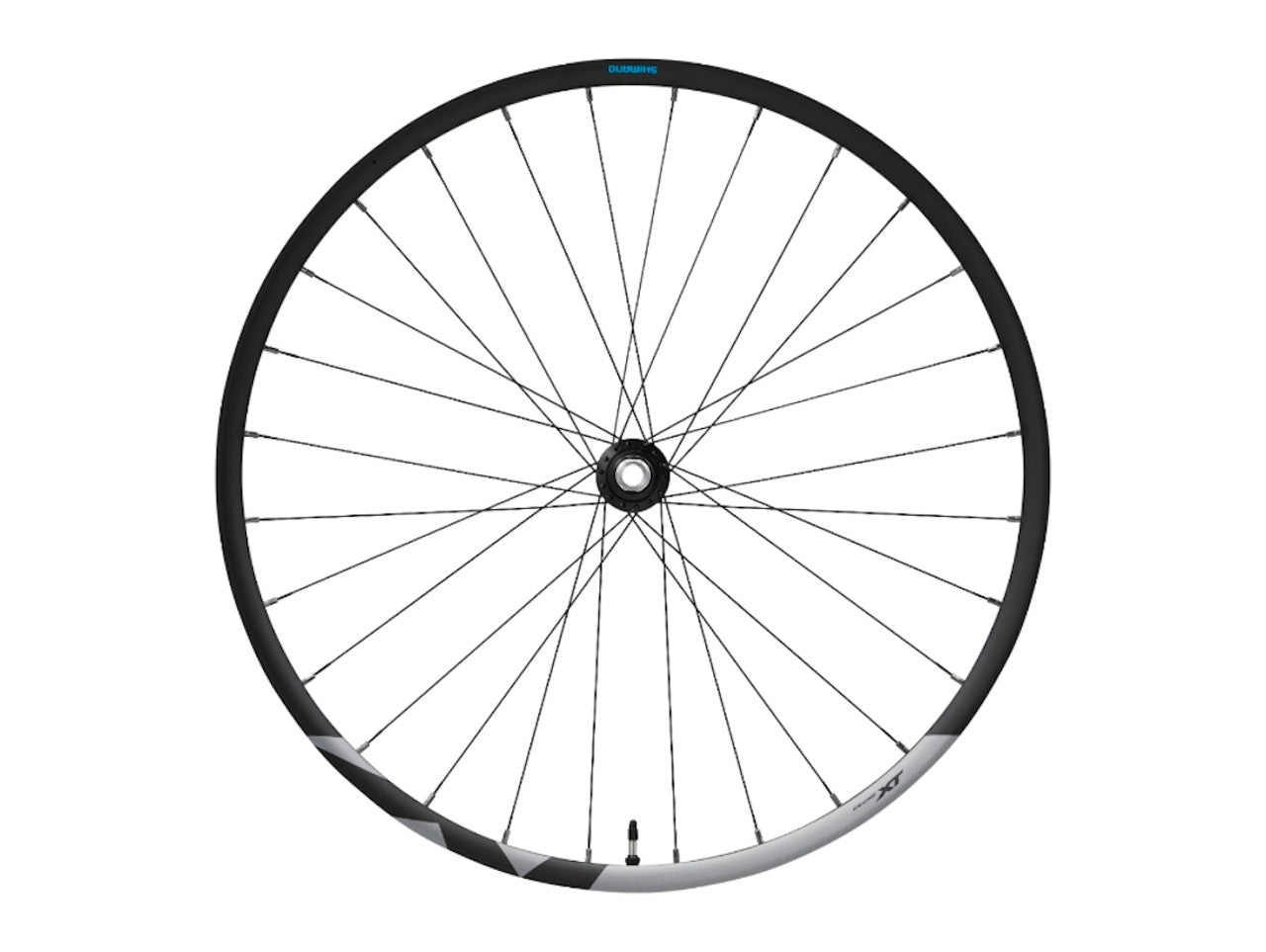

Shimano Deore XT wheels bring robust performance to any trail
The aluminum tubeless rims are offset for balanced spoke tension. Double butted, straight-pull spokes are laced to Center Lock hubs with reliable, smooth-rolling labyrinth seal hubs.
Technologies
Center Lock -The Center Lock system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

Micro Spline - delivers lightweight aluminum Freehub body to reduce weight and 10 teeth top gear.

Use combination with Micro Splinecassette sprocket and Freehub.

* Micro Spline patents are pending
Features

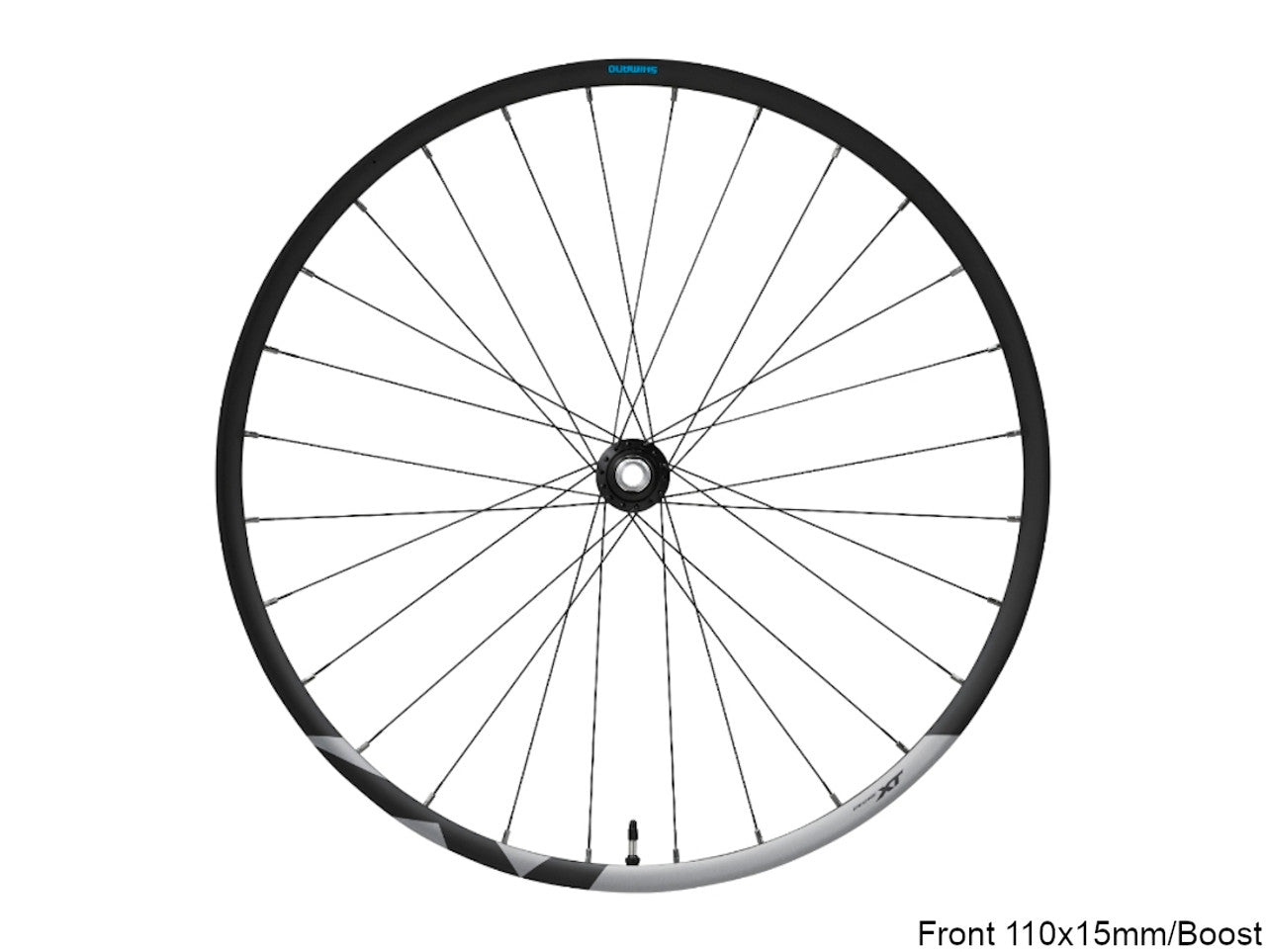

Front

Reliable high-speed cornering
Front 15 mm E-THRU axle +15% torsional stiffness +25% transverse shear stiffness (vs 9 mm quick release)
Simple setup and reliable trail performance
28 J-bend spokes (2.0-1.8-2.0 double butted)
External rim width: 34.7 mm

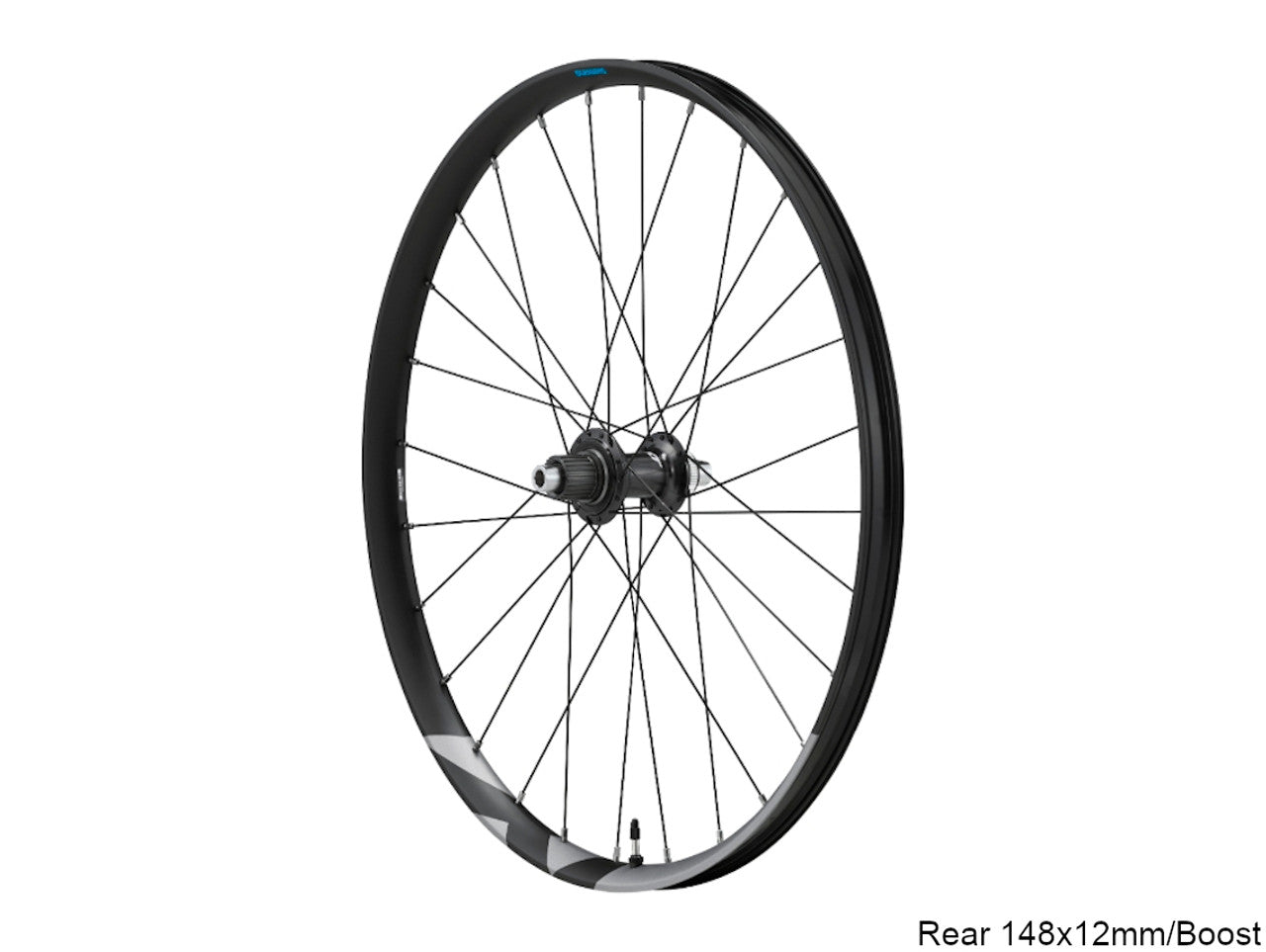

Rear

Reliable high-speed cornering
Faster acceleration amplifies riding excitement
Smaller spline diameter for 10T top gear by MICRO SPLINE
Simple setup and reliable trail performance
Rear 12 mm E-THRU axle
Zero dish
28 J-bend spokes (2.0-1.8-2.0 double butted)
External rim width: 34.7 mm

Specifications

Front
Rear

Average Weight
875
1016

Spokes
J-Bend
J-Bend

Quick Engagement
-
X (max 7.0 deg.)

Brake Type
Center Lock Disc
Center Lock Disc

Axle Fixing Method
15 mm E-Thru
12 mm E-Thru

O.L.D.
110mm
148mm

Rear Speeds
-
12

Axle
Fixing Method: 15mm E-Thru

Thru Axle Length x Inner Diameter: 110x15
Fixing Method: 12mm E-Thru

Thru Axle Length x Inner Diameter: 148x12

Bearing
Cone: CBN

Stainless Ball: Yes
Cone:CBN & Polish

Rim
Height: 19.8mm

Offset Rim: Yes

Requires Rim Tape: X (30-584)

Rim Joint: Welding

Width: 34.7mm
Height: 19.8mm

Offset Rim: Yes

Requires Rim Tape: X (30-584)

Rim Joint: Welding

Width: 34.7mm

Seal
Hub:Labyrinth & Contact
Freehub Body: Contact

Hub:Labyrinth & Contact

Spokes
Butted: 2.0-1.8

Number: 28
Butted: 2.0-1.8

Number: 28

Tyre
Recommended size:27.5 x 2.25 - 2.60

Type: Tubeless
Recommended size:27.5 x 2.25 - 2.60

Type: Tubeless

Wheel Size
584 x 30C (650B = 27.5 inch)
584 x 30C (650B = 27.5 inch)
