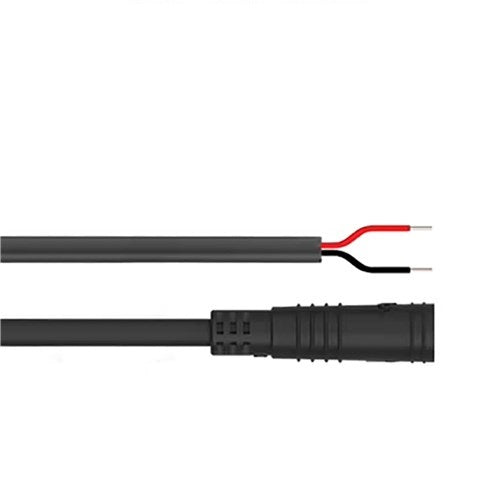

Quad Lock Shimano And Other Drive Units Cycle - Power Cable
Connect the Quad Lock® Waterproof Wireless Charging Head to your compatible e-bike using our Bosch or Shimano connector cables.
Or use the USB C cable to connect to portable power bank. Minimum 10W QC3.0, recommended 18W or higher. Confirm drive unit is compatible and has available port to connect the charger.
Specifications:
- For use with Quad Lock® Waterproof Wireless Charging Head to connect to compatible e-bikes IP67 connector
- 1.1m cable length Confirm cable length will be suitable for your e-bike if it is larger
- frame size or internal headset and cockpit cable routing
- Shimano cable may be extended by a professional a maximum of 250mm with own
- sourced suitable extension cable (22AWG thicker, 2-core insulated cable)
- Requires an available Accessory port on e-bike system.
- Do not share port with other accessories such as lights
- Do not connect directly to battery to avoid battery drain
- Recommended installation to be completed by a mechanic
- Weight: 26g
